SHTP Series
About SHTP Series

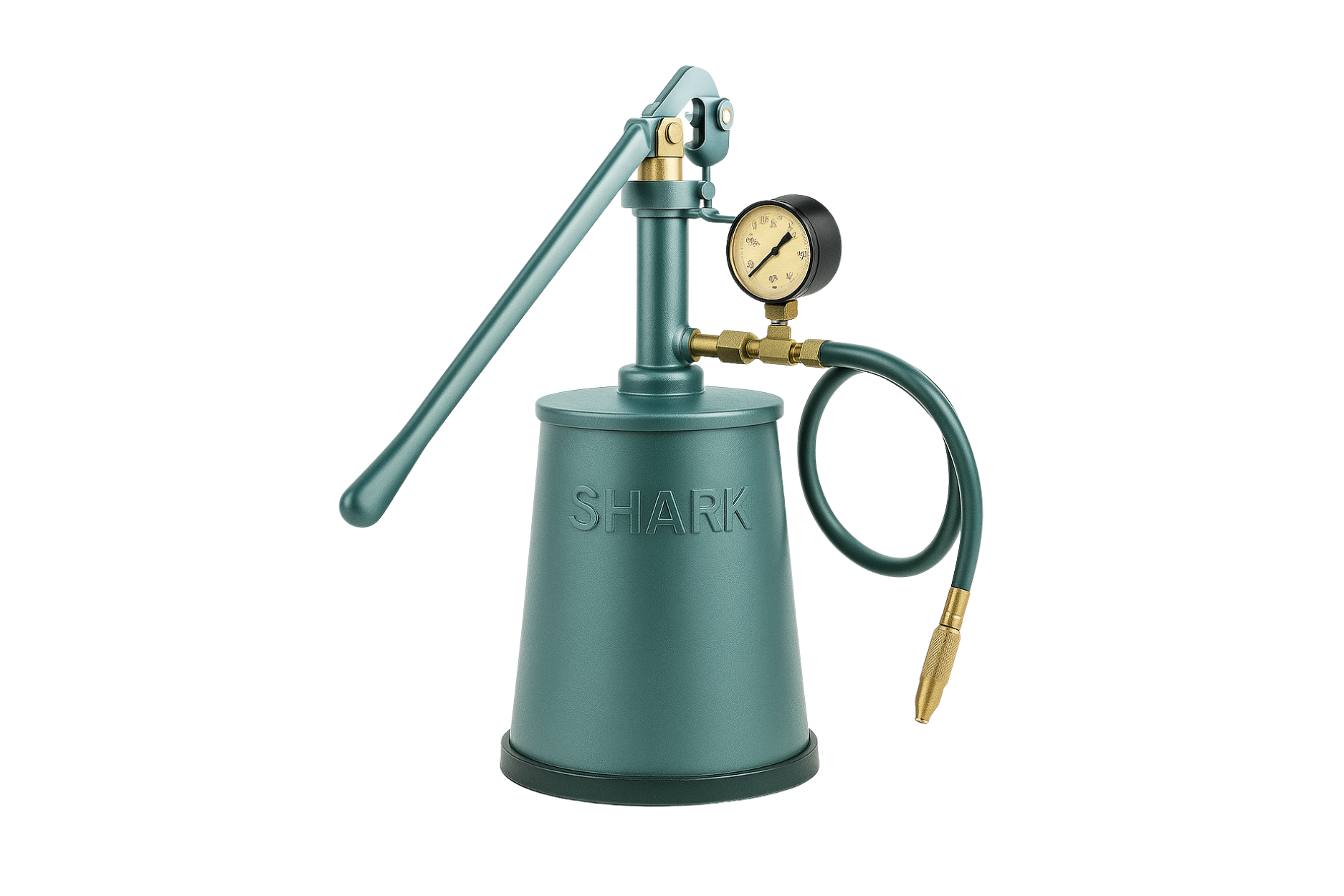

The SHTP Series are Hand Operated Hydraulic Test Pumps manufactured by Shark Pump Engineering Pvt. Ltd.. These compact and reliable pumps are the best choice for manual hydraulic pressure testing — extremely useful for field/site testing of boilers, pressure vessels, castings, pipelines, and machinery components.
Key Features
- › Hand-operated design for manual hydraulic testing.
- › Generates pressure up to 700 kg/cm².
- › Compact MS fabricated frame with CI handle & fulcrum.
- › Durable, transportable — ideal for site use.
- › Supplied with complete accessories for ready operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pressure | Up to 700 kg/cm² max |
| Discharge Size | 1/2" BSP |
| Pail Size | 22 Liters (MS Fabricated) |
| Plunger Size | 12 mm to 24 mm |
| Output / Stroke | 5.65 to 15.70 CC |
| Material (M.O.C) | M.S. Body, C.I. Handle & Fulcrum with Standard Fittings |
Standard Accessories
- › M.S. / S.S. check valve.
- › Brass pressure release cock.
- › Pressure hose with attachment.
- › Precision pressure gauge.
Applications
- › Hydraulic pressure testing of boilers and pressure vessels.
- › Checking leakage in C.I. mains, castings, gas cylinders, pipelines.
- › Testing tubes, pumps and other machinery parts under hydraulic pressure.
- › On-site testing where power source is unavailable.
Advantages
- › Simple, portable, and possible for one-person operation.
- › Accurate & stable pressure testing up to 700 kg/cm².
- › Rugged design — ideal for both workshops and field use.
- › Low maintenance and long service life.
