SHSCP Series
About SHSCP Series

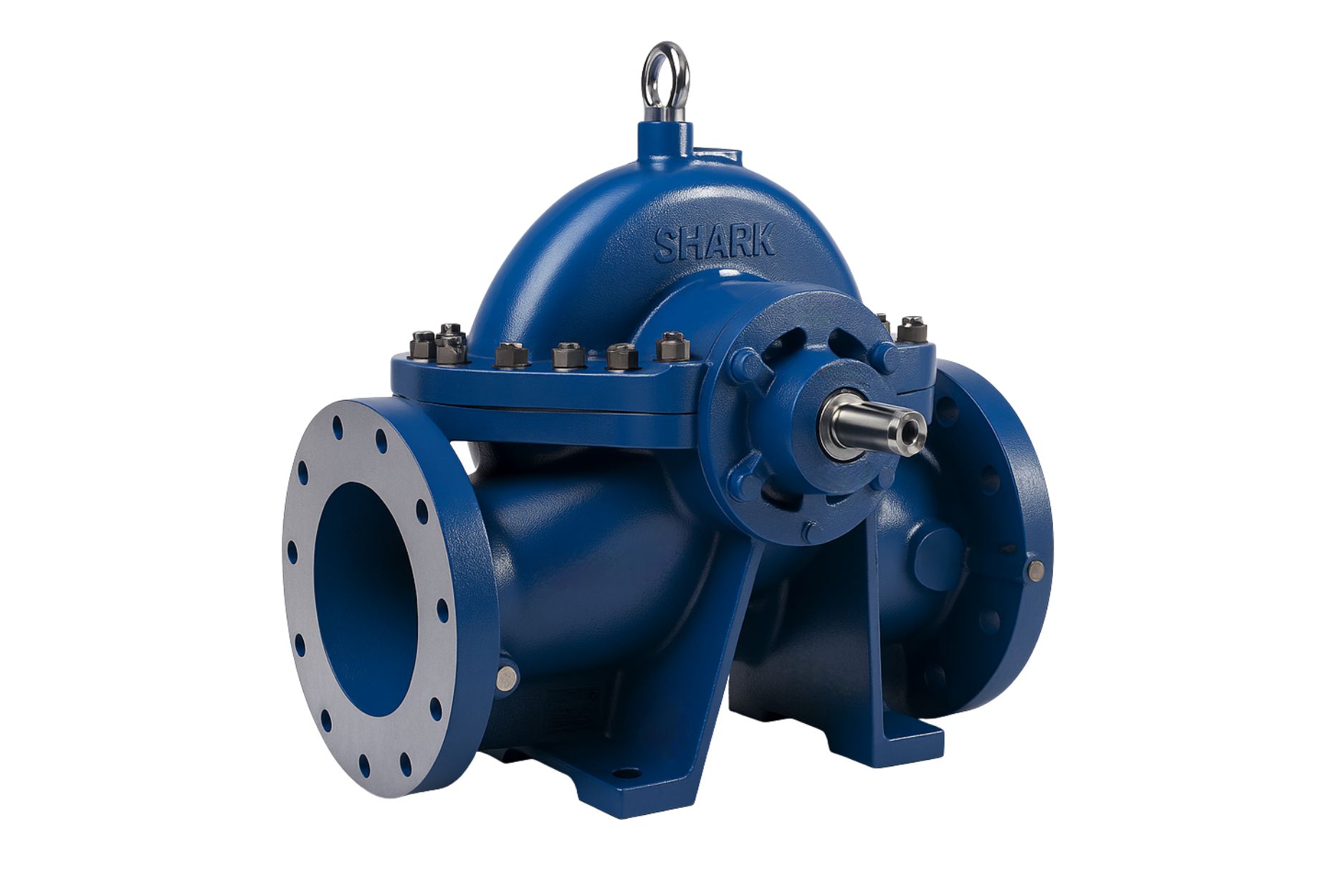

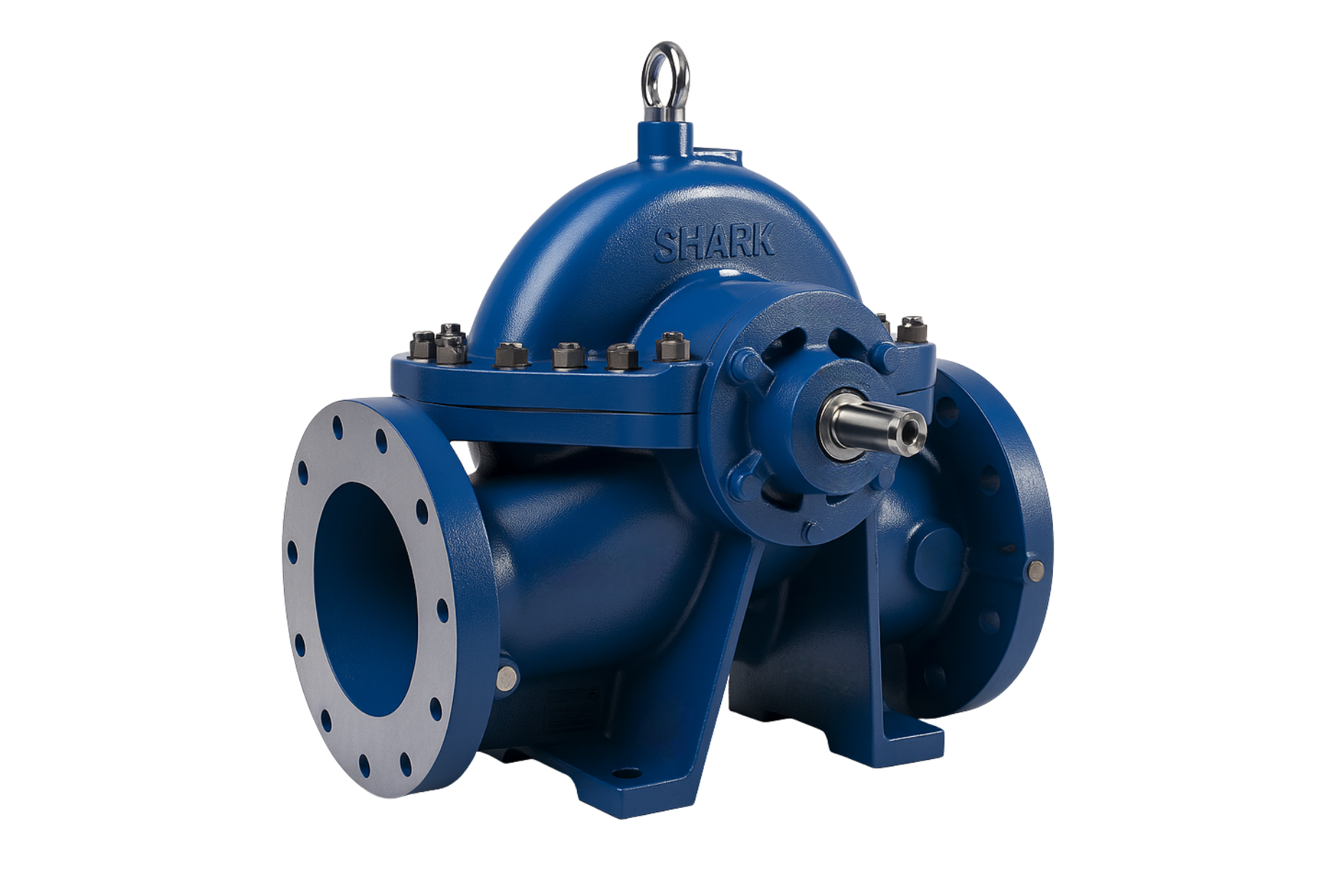

SHSCP Series are Horizontally Axially Split Casing Pumps manufactured by Shark Pump Engineering Pvt. Ltd. These pumps are specially designed for high-capacity, high-head water handling applications. The axially split casing design allows easy inspection and maintenance without disturbing suction and discharge pipelines.
Operating Data
| Parameter | Specification |
|---|---|
| Capacity | Up to 5000 m³/hr |
| Head | Up to 140 meters |
| Discharge Size | 50 mm to 500 mm |
| Temperature | Up to 100°C |
| Pressure | Up to 14 kg/cm² |
| Speed | Up to 1800 RPM |
| Material (M.O.C) | C.I, C.S, SS-304 / 304L, SS-316 / 316L, Bronze, Alloy-20, CD4MCU, Hastelloy Alloy B & C |
Applications
- Fire fighting systems
- Primary & secondary HVAC application
- High pressure boosting system
- Dewatering in mines
- Cooling tower
- Recirculation systems
- Industrial utility water application
- Water supply
- Paper plant
- Petroleum refineries
- Sugar & steel plant
- Power plant
- Air conditioning & refrigeration systems
- Irrigation
