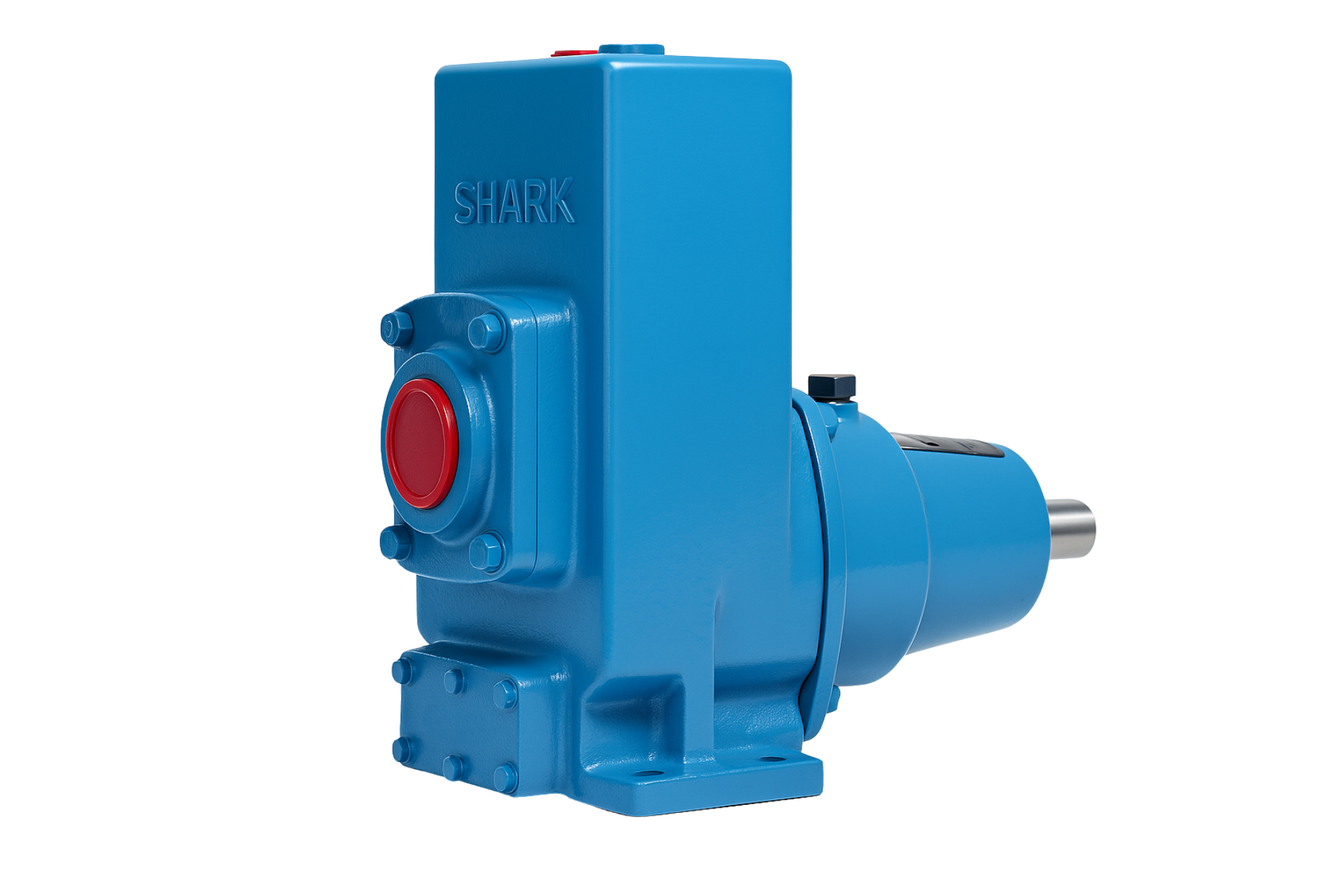

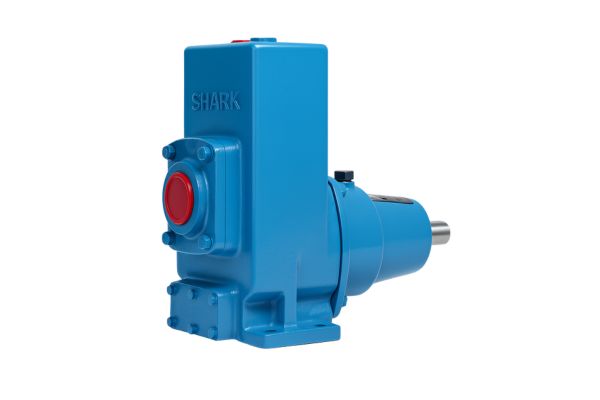

SHSP Series
About SHSP Series
The SHSP Series are single-stage horizontal self-priming non-clog pumps engineered for mud, sewage, and industrial wastewater applications. Manufactured by Shark Pump Engineering Pvt. Ltd., these pumps are built for reliable operation, easy maintenance and continuous duty even in the presence of suspended solids.
Key Features
- › Single-stage, self-priming, non-clog design optimized for solids handling.
- › Capable of handling suspended solids up to 25 mm.
- › Multiple mechanical seal options available: STV, CCV, CCT.
- › Designed for easy maintenance and long service life.
- › Suitable for dewatering, sewage, effluent and industrial wastewater duties.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 75 m³/hr |
| Head | Up to 58 meters |
| Suction Head | Up to 7 meters |
| Discharge Size | 32 mm to 80 mm |
| Solid Size | Up to 25 mm |
| Temperature | Up to 110°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 5.8 kg/cm² |
| Material (M.O.C) | C.I, C.S, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy |
Mechanical Seal Options
- › STV: Carbon vs Ceramic / Tungsten Carbide with NBR elastomer.
- › CCV: Carbon vs Ceramic / Tungsten Carbide with Viton elastomer.
- › CCT: Carbon vs Ceramic / Tungsten Carbide with PTFE elastomer.
Applications
- › Dewatering, mud handling, marine and effluent transfer.
- › Construction dewatering — foundations, trenches and pits.
- › Filter press feeding, ETP, STP and wastewater treatment plants.
- › Mobile equipment and marine cooling water systems.
- › Municipal drainage and public works.
- › Food, cement, sugar, paper and pharmaceutical effluents.
- › Bulk handling on freighters, barges and cargo vessels with solid–liquid mixtures.
Advantages
- › Non-clogging impeller profile — ideal for muddy and sewage water.
- › Strong suction lift and rapid self-priming.
- › High reliability with mechanical seal protection.
- › Durable construction for extended service life in harsh environments.
- › Simple maintenance with minimized downtime.
