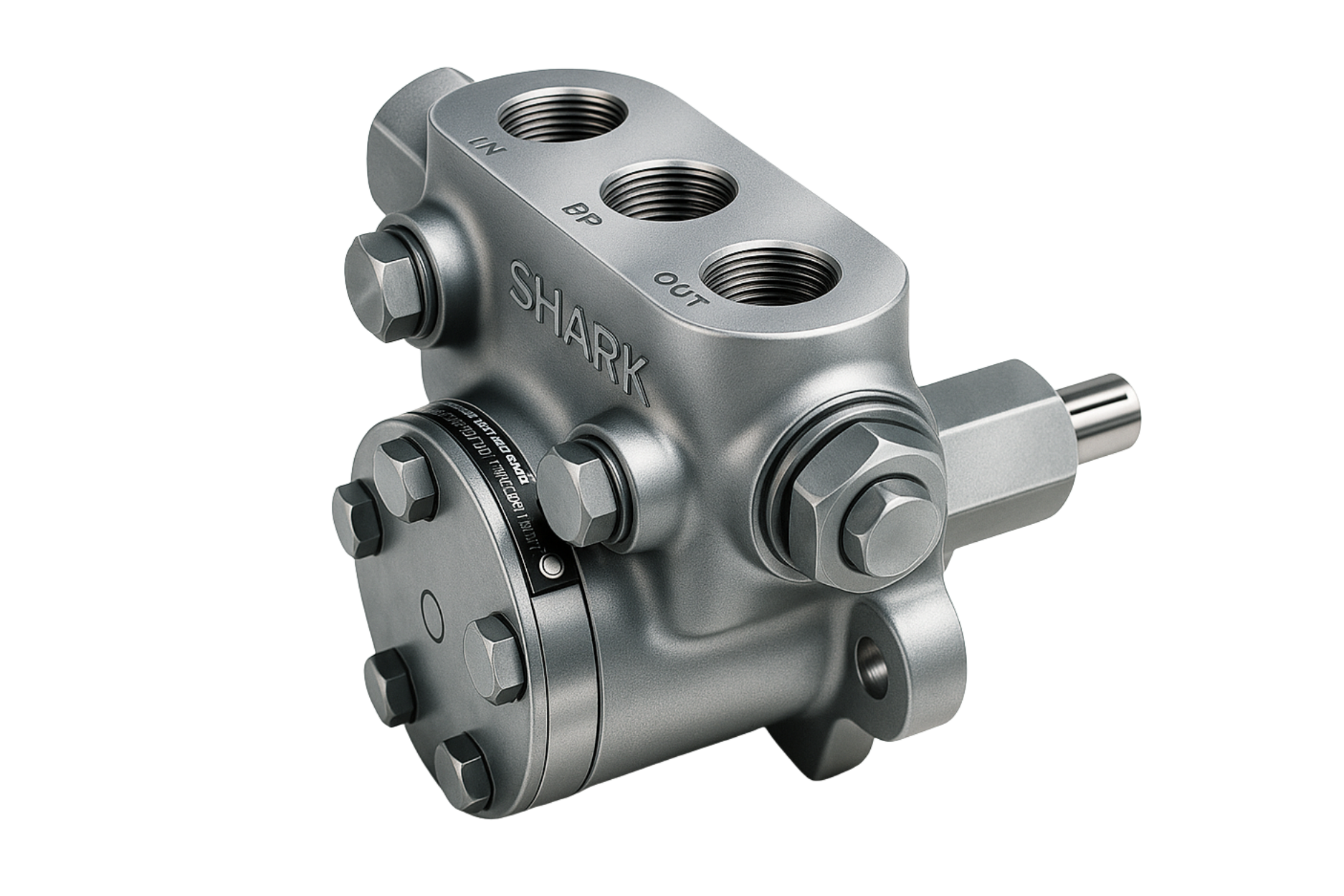

SHIG Series
About SHIG Series
The SHIG Series are precision Fuel Injection Internal Gear Pumps from Shark Pump Engineering Pvt. Ltd.. With compact design and tight internal clearances, these pumps transfer oils, fuels, and lubricants with accurate flow and pressure — making them ideal for fuel injection and lubrication systems.
Key Features
- › Internal gear design — low pulsation and high volumetric efficiency.
- › Suitable for both clockwise and anti-clockwise rotation.
- › Handles viscous fluids up to 450 CST.
- › Compact, quiet operation suitable for continuous duty.
- › Ideal for oils, fuels, lubricants, and hydraulic applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 6000 LPH |
| Discharge Size | 3/8" to 1" |
| Temperature | Up to 200°C |
| Pressure | Up to 30 kg/cm² |
| Speed | 1400 RPM & 2880 RPM |
| Viscosity | Up to 450 CST |
| Direction of Rotation | Clockwise [R] & Anti-Clockwise [L] (viewed from shaft end) |
| Material (M.O.C) | C.I. / C.S. |
Scope of Applications
- › Oil burners and boiler fuel systems.
- › Hydraulic dry pressure systems and PHF units.
- › Lubrication oil and hydraulic oil circulation.
- › Diesel boosting for locomotives and heavy vehicles.
- › Refineries and fuel transfer systems.
- › Force-feed lubrication and pressure regulation systems.
Advantages
- › High volumetric efficiency and precise flow.
- › Handles thin to viscous liquids without performance loss.
- › Compact design for tight installations.
- › Reliable performance at high pressures.
- › Long service life and low maintenance.
