SHFPP Series
About SHFPP Series

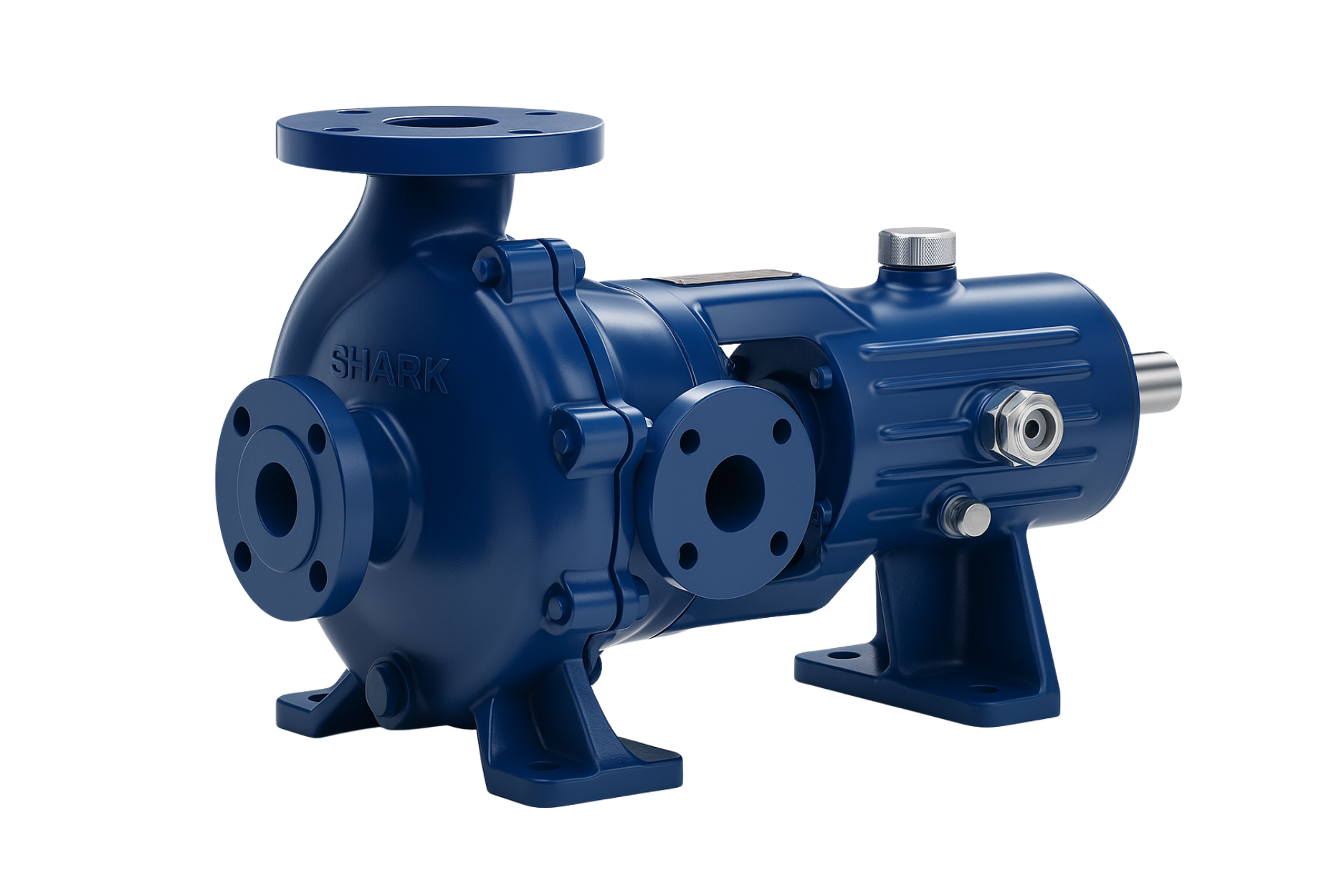

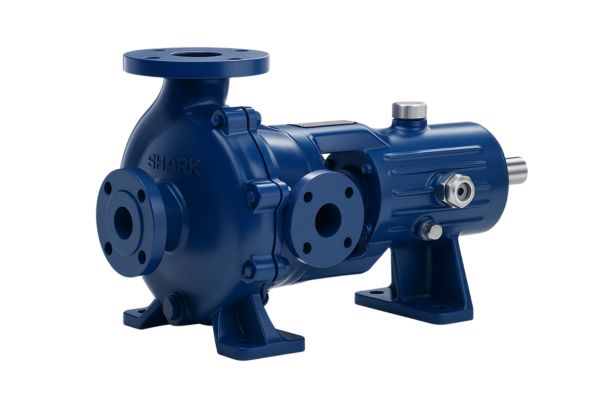

The SHFPP Series are Horizontal Single Stage Side Suction Pumps designed for high efficiency and reliable operation in industrial processes. Manufactured by Shark Pump Engineering Pvt. Ltd., these pumps are ideal for demanding applications such as filter press feeding, slurry transfer, and effluent treatment.
Key Features
- › Horizontal single-stage construction for efficient performance.
- › Side suction design ensures easy priming and maintenance.
- › Suitable for positive / flooded suction conditions only.
- › Continuous operation capability under varying loads.
- › Available in varied M.O.C. for corrosive & abrasive fluids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 200 m³/hr |
| Head | Up to 100 meters |
| Discharge Size | 40 mm to 100 mm |
| Temperature | Up to 130°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 10 kg/cm² |
| Material (M.O.C) | C.I, C.S, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hast Alloy |
| Special Note | Only for Positive / Flooded Suction Head |
Applications
- › Filter press feeding.
- › Effluent treatment plants (ETP) & chemical transfer.
- › Dyes, pigments, slurry transfer.
- › Steel rolling mills and process fluid handling.
- › Ceramic, paper, pulp, sugar, and food industries.
- › Evaporator, scrubber, and general-purpose fluid transfer.
Advantages
- › Compact horizontal design — space efficient.
- › Easy maintenance & robust construction.
- › Handles moderate slurries and viscous liquids.
- › Consistent performance under fluctuating loads.
- › Wide M.O.C. options for varied industries.
