Welcome to Shark Pump Engineering Pvt. Ltd.
About Shark Pumps
Shark Pump Engineering Pvt. Ltd., an ISO 9001:2008 certified company from Ahmedabad, manufactures high-performance industrial pumps with a focus on reliability, efficiency, and quality.
Get a Free Inquiry

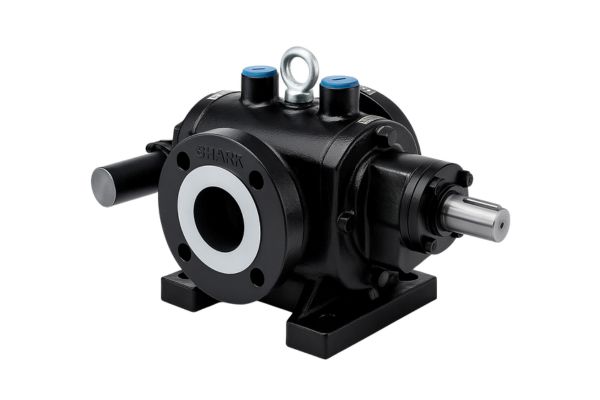

SHGP Series
About SHGP Series
The SHGP Series are high-performance Multi-Purpose Rotary Gear Pumps designed with double-helical gears for smooth and noiseless operation. Manufactured by Shark Pump Engineering Pvt. Ltd., these pumps efficiently transfer a wide range of liquids—from light to highly viscous fluids such as oils, paints, molasses, and grease—thanks to their robust construction and low-maintenance design.
Key Features
- › Double helical gear design for smooth, pulsation-free flow.
- › Capable of handling light to highly viscous fluids.
- › Heavy-duty construction suitable for continuous industrial operation.
- › Compact, space-saving design for easy installation.
- › Available in CI, CS, SS, Bronze, Alloy-20, Hast Alloy, and more.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 200 m³/hr |
| Head | Up to 120 meters |
| Discharge Size | 12 mm to 200 mm |
| Temperature | Up to 250°C |
| Speed | Up to 1500 RPM |
| Pressure | Up to 12 kg/cm² |
| Material (M.O.C) | CI, CS, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hast Alloy |
Applications
- › Transfer of oils, fats, coal tar, paint, molasses, and grease.
- › Handling viscous liquids such as glycerin, glue, and soap solutions.
- › Ideal for tar, petroleum, and chemical mixtures.
- › Widely used in paint, sugar, oil, and chemical industries.
Advantages
- › No pulsation or vibration due to double-helical gear design.
- › High volumetric efficiency and silent operation.
- › Compatible with a wide range of viscosities.
- › Compact, durable, and low-maintenance design.
- › Long operational life.
