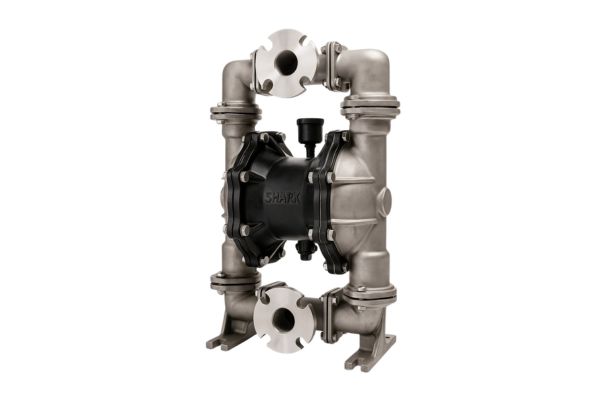

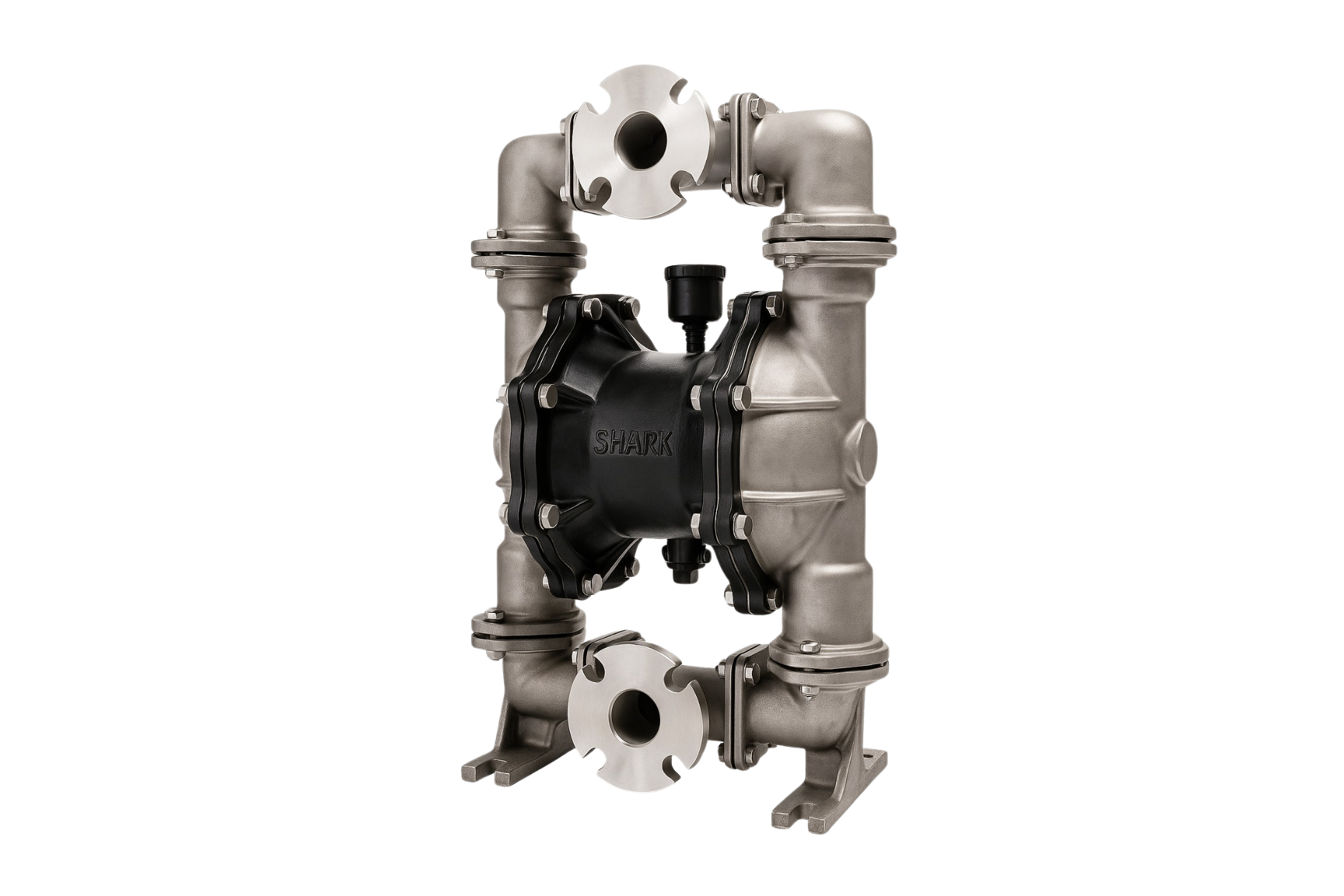

SHDP Series
About SHDP Series
The SHDP Series are Air Operated Double Diaphragm (AODD) Pumps designed by Shark Pump Engineering Pvt. Ltd.. These pumps are self-priming, positive displacement type which safely handle corrosive, viscous and abrasive fluids — completely without electric drives (best suited for explosion-proof operations).
Key Features
- › Air operated — no need for electrical power, explosion-proof operation.
- › Self-priming and dry-run capable for flexible operation.
- › Efficiently handles solids, slurries and high-viscosity fluids.
- › Corrosion-resistant construction with multiple M.O.C. options.
- › Compact, portable and easy-to-maintain design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow | Up to 55 m³/hr |
| Head | Up to 70 meters |
| Discharge Size | 12 mm to 80 mm |
| Temperature | Up to 120°C |
| Pressure | Up to 7 kg/cm² |
| Air Inlet Size | 1/4" to 1/2" |
| Air Exhaust Size | 1/2" BSP |
| Solid Handling | Up to 12 mm |
| Material (M.O.C) | SS 316, SS 304, PP, PVDF, Aluminium, etc. |
| Rubber Diaphragm Suction Lift | Dry: 4.5 m / Wet: 7.5 m |
| Teflon Diaphragm Suction Lift | Dry: 3 m / Wet: 6 m |
Applications
- › Transfer of solvents, acids, caustic liquids.
- › Handling of high-viscosity and abrasive fluids.
- › Safe transfer of hazardous and flammable liquids.
- › Barrel loading/unloading, filter press feeding, slurry transfer.
- › Industrial process and chemical transfer operations.
Advantages
- › Explosion-proof operation for hazardous areas.
- › Excellent chemical compatibility and solid handling capability.
- › Lightweight, portable and easy maintenance.
- › Quick startup due to self-priming design.
- › Versatile — use for transfer, filtration and dewatering applications.
