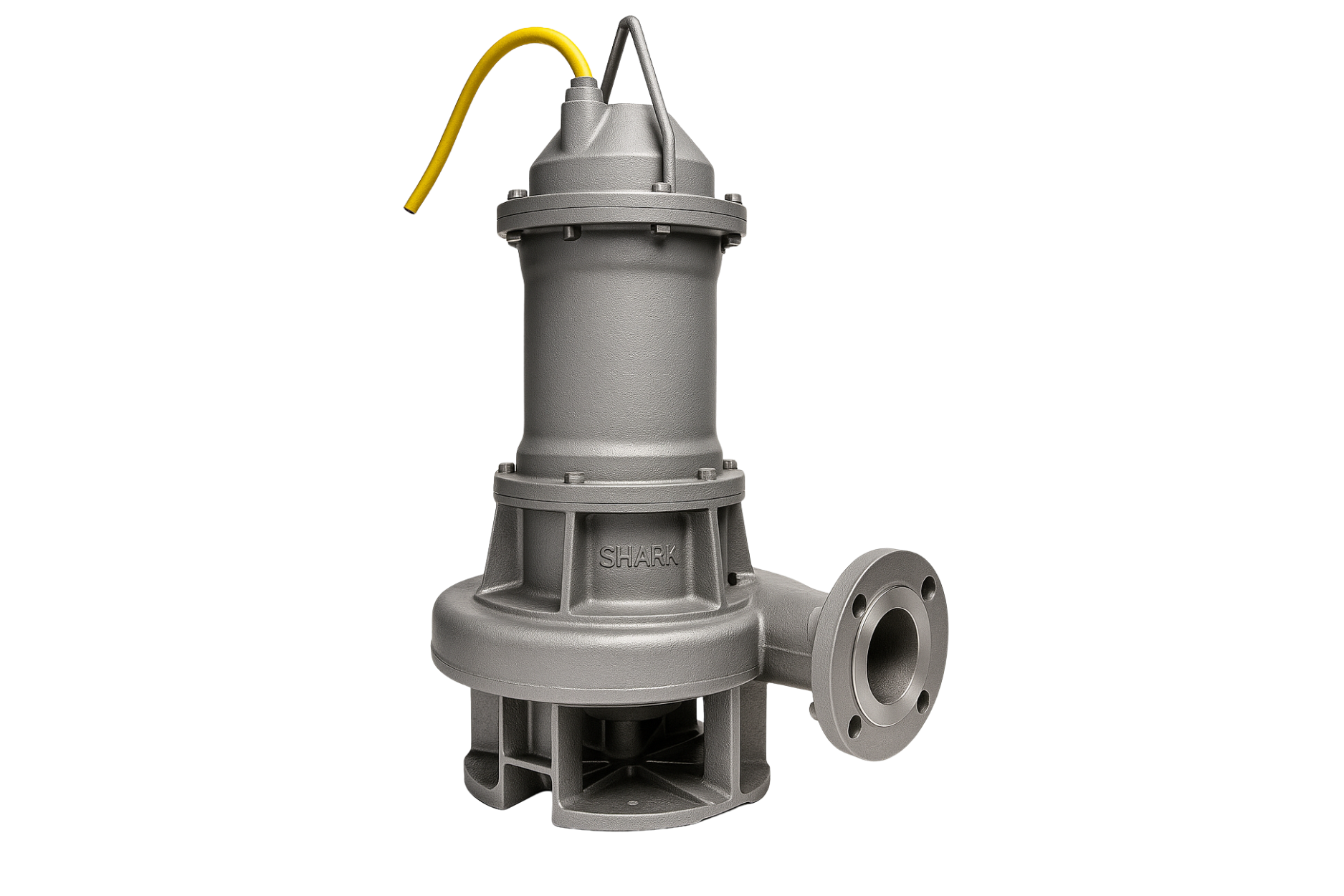

SHHSP Series
About SHHSP Series
The SHHSP Series are low-speed heavy-duty sewage & effluent submersible pumps by Shark Pump Engineering Pvt. Ltd., designed for continuous, reliable and quiet operation in municipal, industrial and commercial wastewater systems.
Key Features
- › Low-speed design for longer life and smooth performance.
- › Bi-direction twin mechanical seals — leak-free operation.
- › Class F insulation & IP68 protection with efficient cooling.
- › Handles solid-laden wastewater and slurries up to 50 mm.
- › Available in 2–50 HP range for heavy-duty continuous duty.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 500 m³/hr |
| Head | Up to 45 meters |
| Temperature | Up to 45°C |
| Power (HP) | 2 – 50 HP |
| Speed (RPM) | Up to 1500 |
| Delivery Size | 65 mm – 200 mm |
| Solid Handling | Up to 50 mm |
| Voltage & Phase | 415V, 3 Phase |
| Insulation / Protection | Class F / IP68 |
| Mechanical Seal | Bi-Direction Twin Seal (various face combos) |
| Material (M.O.C) | C.I., C.S.; optional parts Bronze / CF8 / CF8M / CD4MCU |
Applications
- › Sewage & effluent transfer — municipal & industrial.
- › Dewatering ponds, basements, large buildings.
- › Power plants, ETP/STP and wastewater units.
- › Hotels, hospitals, railways, dairy & food industries.
- › Slurry disposal & effluent handling in heavy industries.
Advantages
- › Robust construction for continuous duty in harsh conditions.
- › Heavy-duty bearings & sealing for long life.
- › Easy installation with low maintenance needs.
- › High efficiency motor with low noise.
- › Flexible material options for customized use-cases.
