SHMFP Series
About SHMFP Series

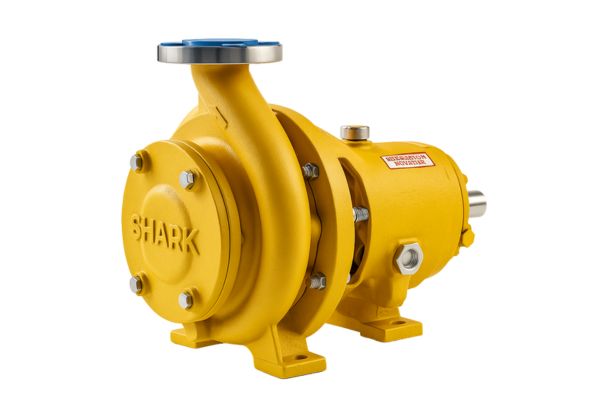

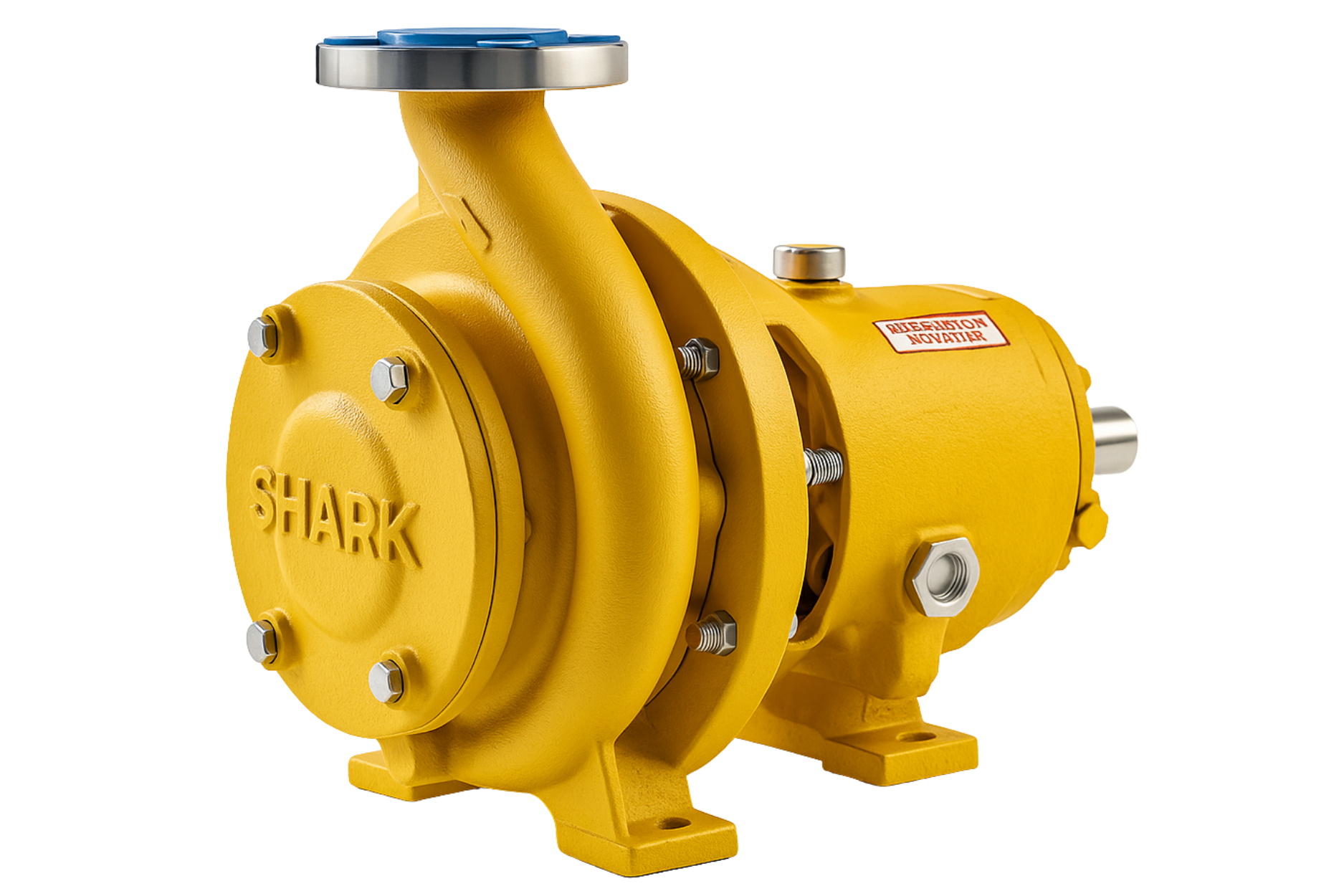

SHMFP Series centrifugal process pumps by Shark Pump Engineering Pvt. Ltd. are operating successfully all over the world. These pumps are specially developed with low NPSH design, superior hydraulic performance and higher efficiency. SHMFP pumps are available with reverse vane semi-open and open type impeller designs to suit different industrial process applications.
Key Features
- › Low NPSH design for better suction performance.
- › Reverse vane semi-open and open impeller options.
- › Robust construction with excellent wear resistance.
- › Designed for continuous-duty industrial applications.
- › High efficiency with low operating and maintenance cost.
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Rate | 1 m³/hr to 250 m³/hr |
| Head | 2 mtr to 150 mtr |
| Casing Pressure | Up to 16 bar |
| Temperature | -20°C to 300°C |
| Specific Gravity | 0.7 to 1.6 kg/m³ |
| Motor Rating | 1 HP to 100 HP |
Available Models
SHMFP Series pumps are available in a wide range of models with different suction × discharge sizes to meet specific flow and head requirements.
Applications
- › Chemical and petrochemical process industries.
- › Pharmaceutical and bulk drug manufacturing.
- › Dyes, pigments and specialty chemical plants.
- › Food, beverage and distillery processes.
- › Refineries, fertilizers and power plants.
Advantages
- › Superior hydraulic efficiency and stable operation.
- › Low NPSH requirement reduces cavitation risk.
- › High wear resistance and long service life.
- › Easy maintenance with precision-manufactured components.
- › Economical operation with reduced lifecycle cost.
