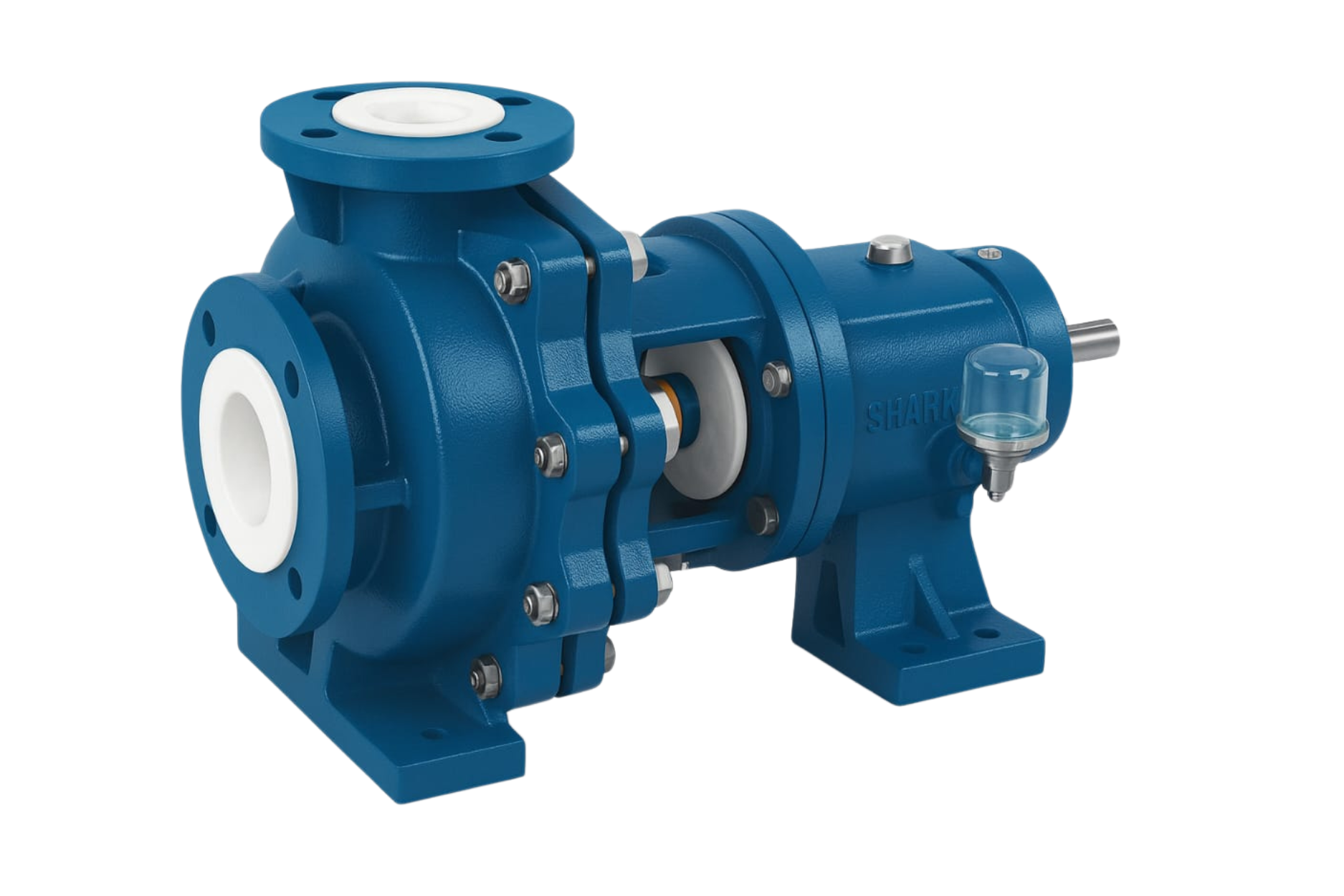

SHPF Series
About SHPF Series
The SHPF Series are high-performance PVDF centrifugal process pumps specially engineered for transferring highly corrosive and hazardous liquids. Developed by Shark Pump Engineering Pvt. Ltd., these pumps offer superior chemical resistance and reliable performance under elevated temperatures.
Key Features
- › Manufactured from pure PVDF material for excellent chemical resistance.
- › Handles strong acids, alkalis, solvents, and corrosive gases.
- › Designed for high-temperature applications up to 120°C.
- › Ideal for transfer, loading and unloading of aggressive liquids.
- › Long service life with leak-proof, low-maintenance design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 250 m³/hr |
| Head | Up to 90 meters |
| Discharge Size | 25 mm to 100 mm |
| Temperature | Up to 120°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 9 kg/cm² |
| Material (M.O.C) | PVDF (Polyvinylidene Fluoride) |
Applications
- › Water & effluent treatment, electroplating, pickling & steel mills.
- › Transfer and unloading of corrosive liquids (HCl, sulphuric acid, caustic alkali).
- › Scrubbing of corrosive gases (NH3, CO2, SO2, SO3, Br2, Cl2).
- › Chemical circulation in metal finishing processes.
- › Pickling line & scrubber applications in steel plants.
- › High-capacity transfer for dyes, chemicals & fuel applications.
- › Pesticide, insecticide, chlorine & bulk drug plants.
Advantages
- › Unmatched resistance to strong acids and corrosive media.
- › Leak-proof and maintenance-free operation.
- › Energy-efficient with high flow & head range.
- › Long life with durable PVDF construction.
- › Ideal for harsh industrial and chemical environments.
