SHSBFP Series
About SHSBFP Series

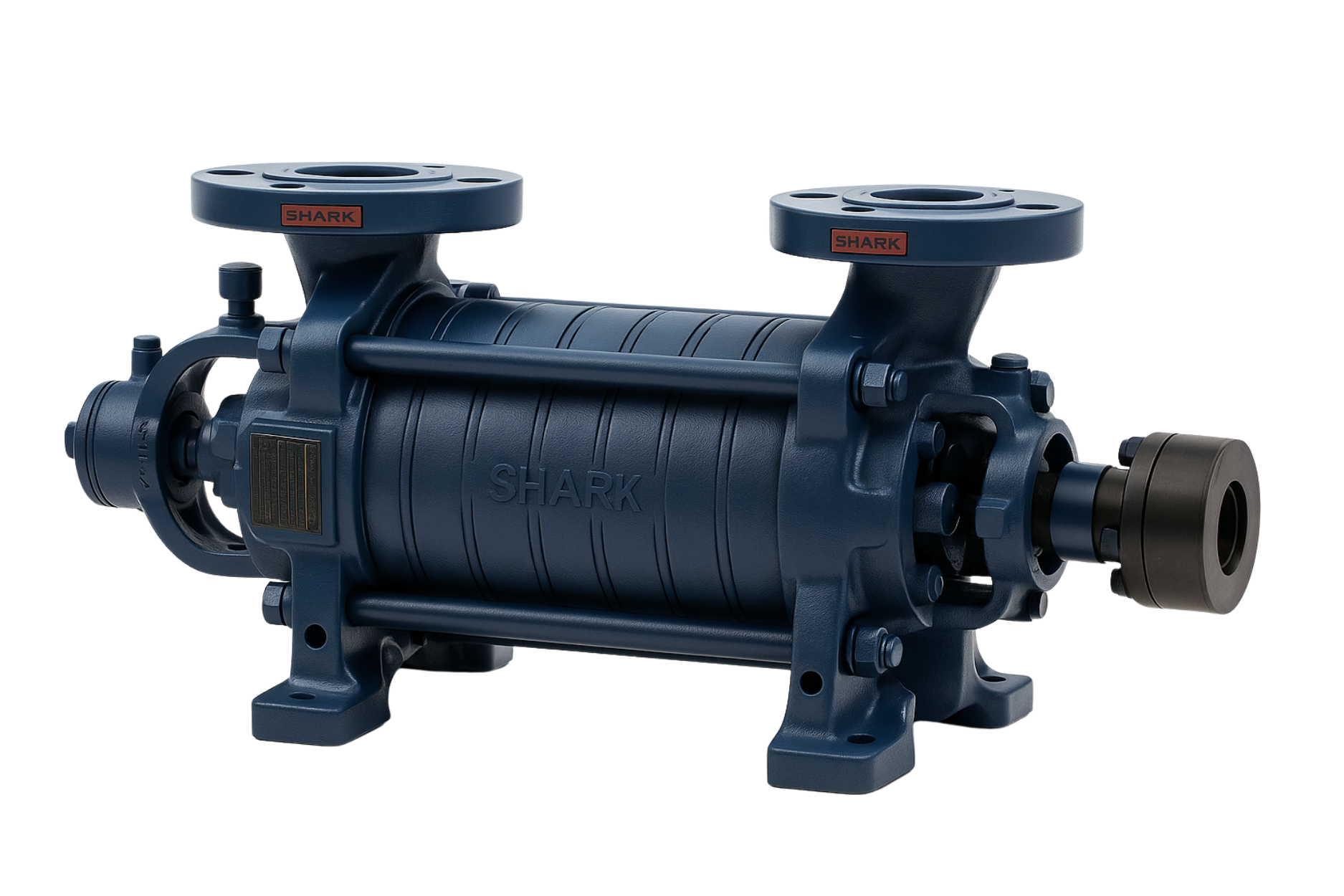

The SHSBFP Series are self-priming multi-stage high-pressure pumps by Shark Pump Engineering Pvt. Ltd.. These pumps are designed for suction-lift and high-head applications where consistent performance, efficiency, and durability are essential.
Key Features
- › Self-priming design — suction lift up to 7 meters.
- › Multi-stage construction for high discharge pressure.
- › Compact & balanced — low vibration and noise.
- › Available in CI, Bronze, Steel (various M.O.C).
- › Suitable for liquids containing vapor, air or gas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 22 m³/hr |
| Head | Up to 288 meters |
| Discharge Size | 25 mm to 50 mm |
| Temperature | Up to 105°C |
| Suction Lift | Up to 7 meters |
| Speed | Up to 1500 RPM |
| Pressure | Up to 28.8 kg/cm² |
| Material (M.O.C) | Cast Iron, Bronze, Steel, etc. |
Scope of Applications
- › Liquids containing vapor, air or gas transfer.
- › Boiler feed, condensate systems & marine/refrigeration.
- › Fuel oil transfer, high-pressure testing.
- › Power plant & industrial process systems.
- › Water supply for multi-storey buildings, hilly areas & sprinkler irrigation.
Advantages
- › Excellent self-priming even in vapor-laden conditions.
- › High head with low energy usage thanks to multi-stage design.
- › Sturdy construction for long-term reliability.
- › Low maintenance and easy servicing access.
