Welcome to Shark Pump Engineering Pvt. Ltd.
About Shark Pumps
Shark Pump Engineering Pvt. Ltd., an ISO 9001:2008 certified company from Ahmedabad, manufactures high-performance industrial pumps with a focus on reliability, efficiency, and quality.
Get a Free Inquiry

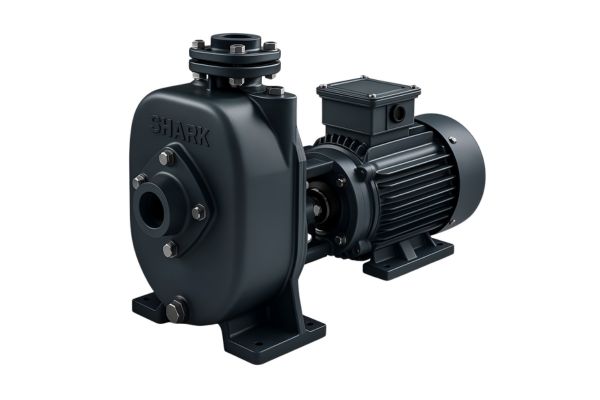

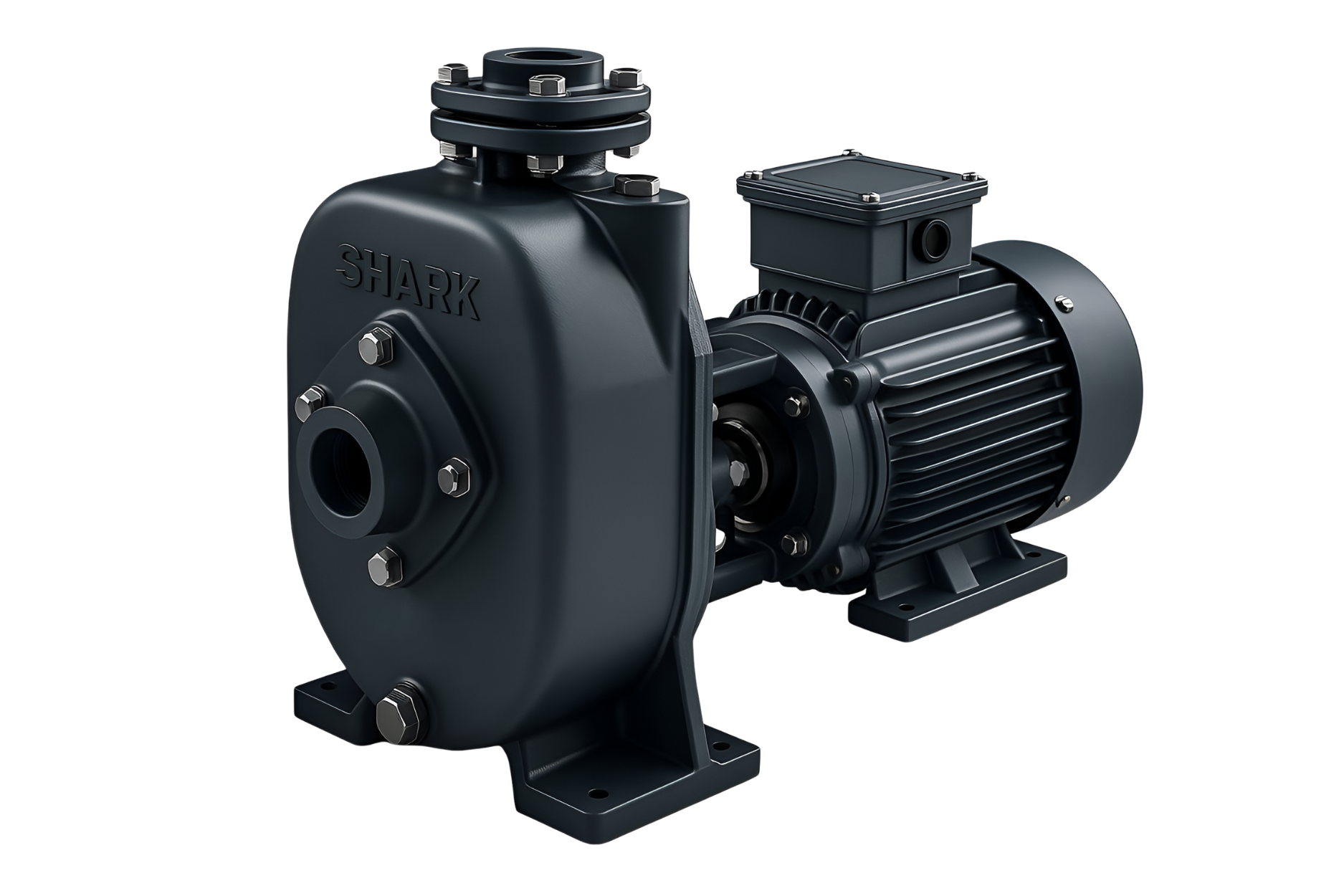

SHMP-M- Series
About SHMP-M Series
The SHMP-M Series are single-stage horizontal, non-clog, self-priming monoblock pumps manufactured by Shark Pump Engineering Pvt. Ltd. Combining compact monoblock construction with robust hydraulics, these pumps are ideal for heavy-duty dewatering, sewage handling and industrial effluent transfer where reliable self-priming performance and easy installation are required.
Key Features
- › Compact monoblock construction — space-saving and easy to install.
- › Self-priming, non-clog design for reliable solids handling.
- › Capable of handling solids up to 25 mm.
- › Available in single-phase (180–240V) and three-phase (380–440V) motors.
- › Constructed from rugged materials suitable for mud, effluent and chemical fluids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 75 m³/hr |
| Head | Up to 48 meters |
| Suction Lift | Up to 5 meters |
| Discharge Size | 40 mm to 80 mm |
| Maximum Solid Size | Up to 25 mm |
| Temperature | Up to 110°C |
| Pressure | Up to 4.8 kg/cm² |
| Speed | Up to 3500 RPM |
| Material (M.O.C) | C.I, C.S, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hastelloy |
| Voltage / Phase | 180–240V (Single Phase) / 380–440V (Three Phase) |
Applications
- › Dewatering for construction sites, trenches and foundations.
- › Mud, effluent and sewage handling — industrial and municipal.
- › Transfer of oils, diesel and petroleum liquids.
- › Cooling water circulation for marine engines and heavy machinery.
- › Filter press feed, ETP and STP wastewater plants.
- › Municipal drainage and public health utilities.
- › Industrial applications: chemical, food, cement, sugar, steel, paper.
- › Liquid cargo transfer on freighters and barges.
Advantages
- › Compact monoblock design simplifies installation and maintenance.
- › Efficient handling of high solid content fluids.
- › Rapid priming and consistent suction performance.
- › Durable components ensure long service life under continuous operation.
- › Energy-efficient options suitable for single and three-phase systems.
